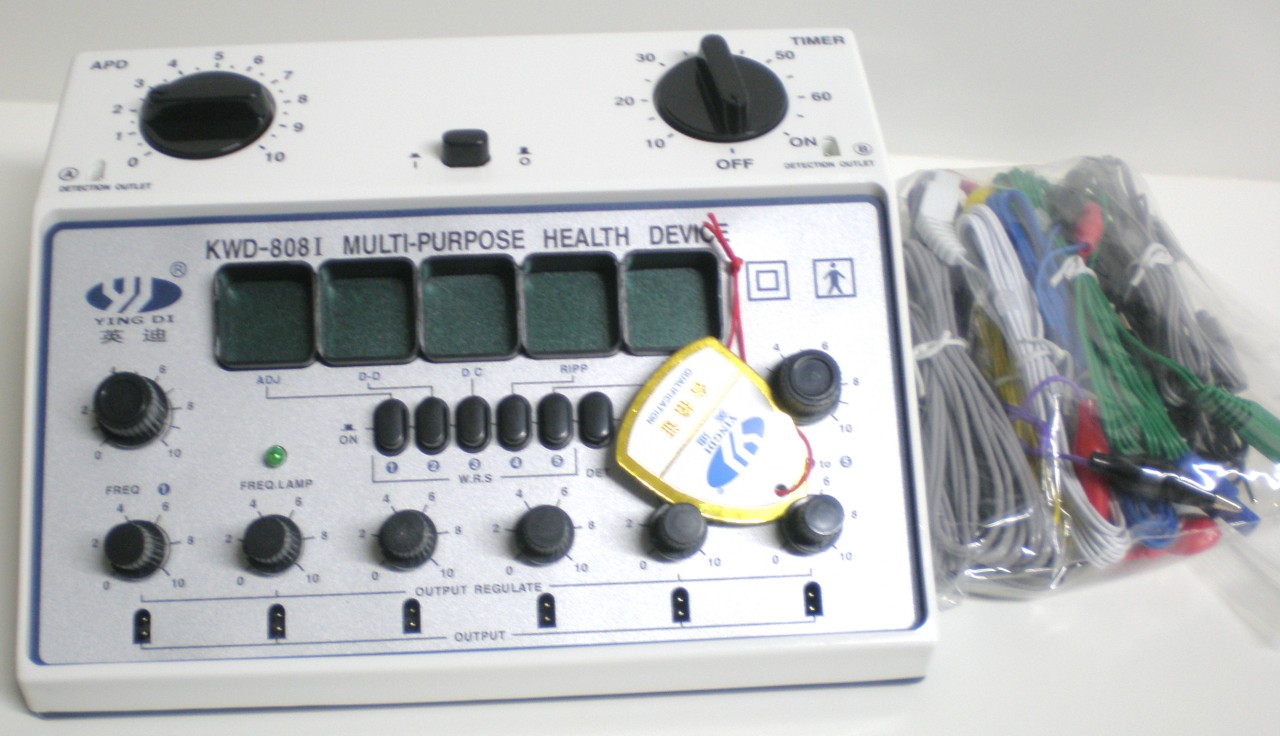

KWD-808-1 Multi-Purpose Stimulator

6 Channels Battery or Electric operated

 Batteries Not included (requires 6 size "C" batteries)


Both of these models are professional models of acupuncture apparatus, having a very nice and modern design. They are mainly used in clinics and hospitals for detection of acupuncture points, massage (T.E.N.S.), acupuncture (electro-needle therapy) and magneto-therapy. These units are equipped with built- in timer and can perform 5 different kinds of waveform and each waveform is indicated by a symbol which lights up when selected. Accompanied with various kind of accessories, such as GSR electrodes and magnets enabling these units become an essential equipment in daily use by acupuncturist.
Model KWD-808 & KWD-808 II have the following features:
1. Functions:

A) Detection of body points
B) Replacement of hand massage
C) Equivalent effective results to that of traditional acupuncture
D) With Magneto-pulse therapy
E) With built-in time interval therapy

2. Features:

This device has 5 types of magneto pulse wave-forms
A) Continuous wave
B) Dense-disperse wave
C) Intermittent wave
D) Ripple wave
E) Respiration wave
These wave-forms have the following characteristics:
1.low voltage
2.low frequency
3. Bi-directional Output Channels:

Model KWD808-1----- 6 channels

1.An output regulator : a voltage meter showing the intensity of the output
2.Frequency pilot lamp indicator
3.Power pilot lamp indicator


1)Pulse wave-forms:
a)positive pulse wave has square wave form, its duration is approximately 0.5-0.8ms, & output peak voltage is >80V at 1 K Resistance.
b)Negative pules wave has triangular wave - form, output peak voltage> 80V at 1 K resistance.
2)Output wave-forms:
a)Continuous wave: Regular pulses, its frequency is about 2-100c/s (Hz)
b)Dense disperse wave: Dense & disperse waves display alternatively, its frequency is 10-40 Hz.
c)Intermittent wave: Dense wave shows at regular interval at a frequency of 10-40 cycles per minute.
d)Ripple wave: Pulse frequency is 100 Hz, its amplitude increases to maximum and drops to minimum suddenly, and repeats the process at a frequency of 10-40 cycles per minute.
e)Respiration wave: Pulse frequency is about 100Hz, its amplitude increases and decreases alternatively at a frequency of 10~40 cycles per minute.
3)Power: DC 1.5V x 6
4)Power Consumption: 2W
5)Weight: 1.2kg
6)Measurement: 220 x 170 x75mm


A) 1 set of searching pen & hand electrode
B) 6 sets of extension wires & spring clip for model KWD-808 & 4 sets for model KWD-808 II.
C) 12 pcs. rubber conductors

Federal Law restricts the sale of TENS, EMS and Micro-Current devices to or on the order of a licensed physician.





Please Note: AA Wellness Supply is not responcible for any purchaser whom dose not have a working knowledge for these types of units. AA Wellness Supply we not give a refund if the unit is in working condition. All shiping and handling rates will be charged for returns.
